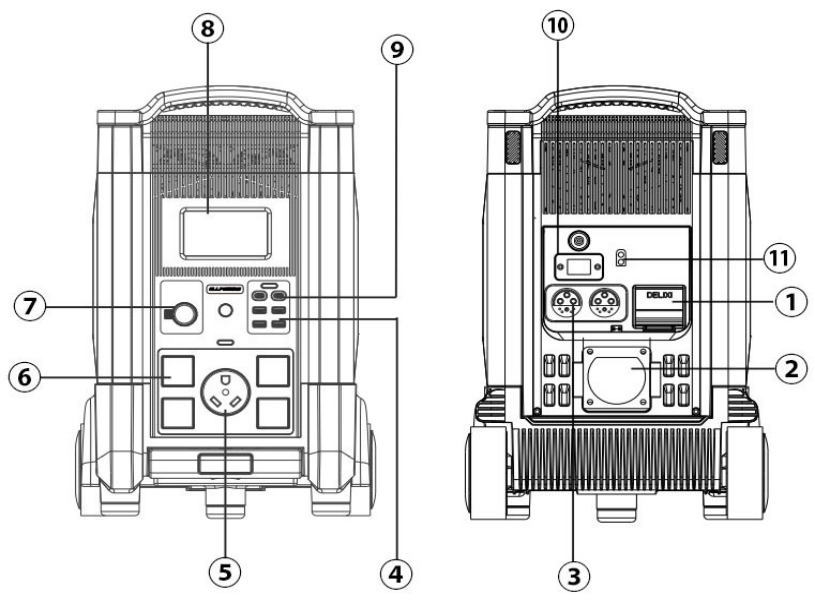

Product Introduction:
1. Power On/Off
7. Car Port
2. 2000W Max EV Input
8. LED Display
3. Parallel Input
9. USB-C Output *2(PD100W Max)
4. USB-A Output *4
10. AC Input
5. RV Port 30A
11. Solar Input XT60 2000W Max(12-150v)
6. AC Output *4(US 20A Max)

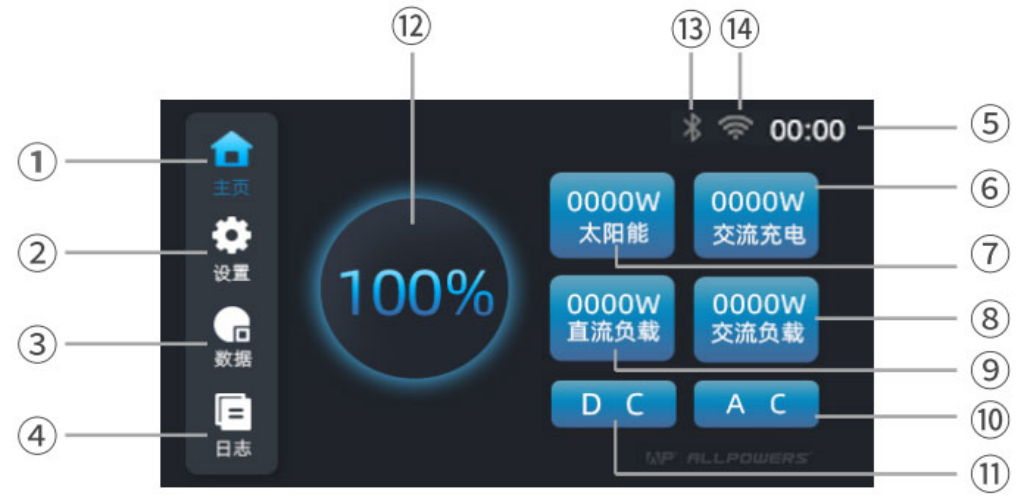

Product Description:
1. Home icon
8. AC load icon
2. Settings icon
9. DC load icon
3. Data icon
10. AC switch icon
4. Log icon
11. DC switch icon
5. Time icon
12. Power icon
6. AC charging icon
13. Bluetooth icon
7. Solar charging real-time charging power
14. WIFI icon
Packing Information:
Output
AC Output
Rated Voltage
100-120V
Rated Power
3600W
Peak Power
6000W
AC Output
Rated Voltage
220-240V
Rated Power
4000W
Peak Power
6000W
Car port output
Rated Voltage
12V
Rated Current
10A
Power
120W（MAX）
USB-A (Output*2)
Rated Voltage- Current
5V-2.4A
Power
12W（MAX）
USB-A (Output*2)
Rated Voltage- Current
5V-3A,9V-2A,12V-1.5A
Power
36W（MAX）
USB-C (Output*1)
Rated Voltage- Current
5V/9V/15V-3A,20V-5A
Power
200W(MAX）
Rv Port output
Rated Current
30A(MAX)
Input
AC/EV Charging Station Input
Rated Voltage
100-120V
Rated Current
15A
Power
1500W(MAX)
AC/EV Charging Station Input
Rated Voltage
220-240V
Rated Current
10A
Power
2000W(MAX)
Solar Energy
Rated Voltage
12-150V
Rated Current
40A
Power
2000W(MAX)
AC/EV Charging Station+Solar
Power
3500W(MAX)
Battery
Rated Capacity
3600Wh
Battery Cell Type
Lithium iron phosphate (LiFePO4）
Protection system
High temperature protection,low temperature protection,over discharge protection,over charge protection,overload protection,short circuit protection,over current protection
General
Storage Enviroment
14℉-104℉
Working Temperature
14℉-104℉

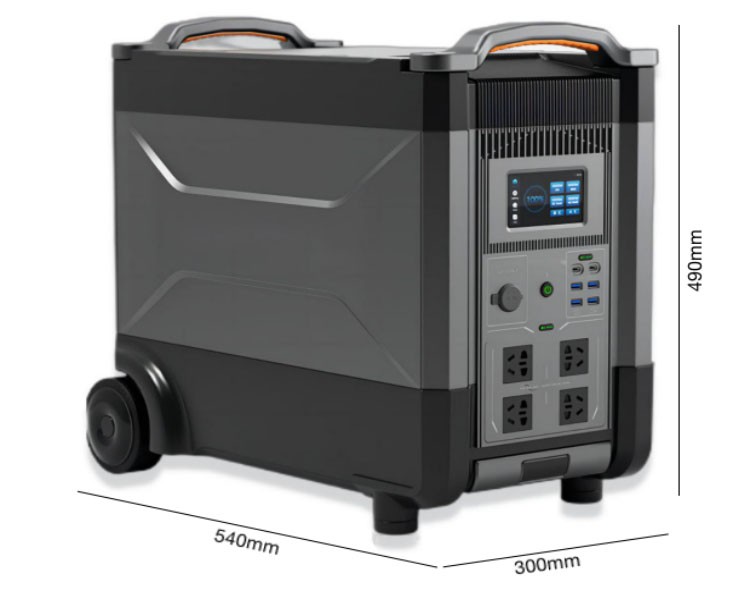

Product Size
540* 490*300mm
Product Net weight
48kg
Certificates
1.CE 2.UL 3.PSE 4.UKCA 5.FCC 6.RoHS 7.UN38.3 8.MSDS

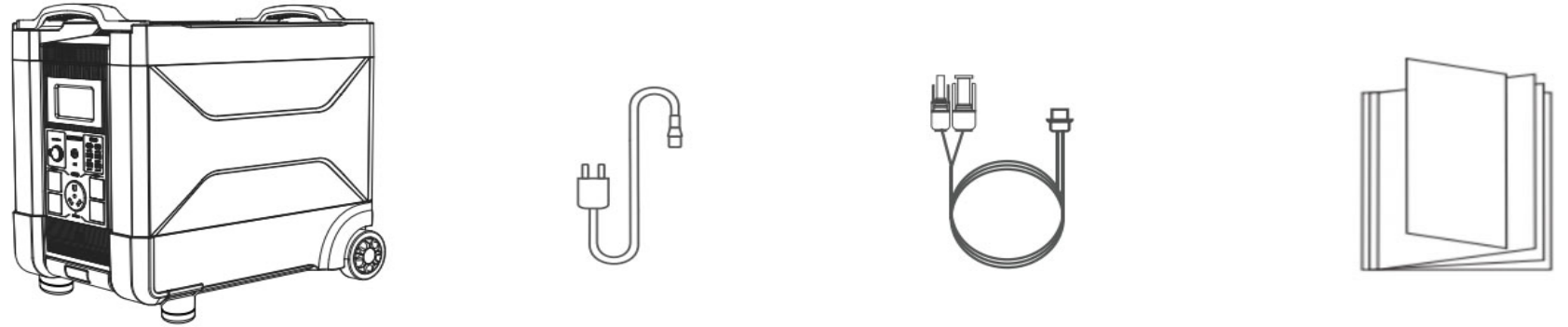

4000W Portable Power Station×1
AC Charging Cable ×1
MC4 TO XT60 charging cable x1
User Manual and warranty card x 1
