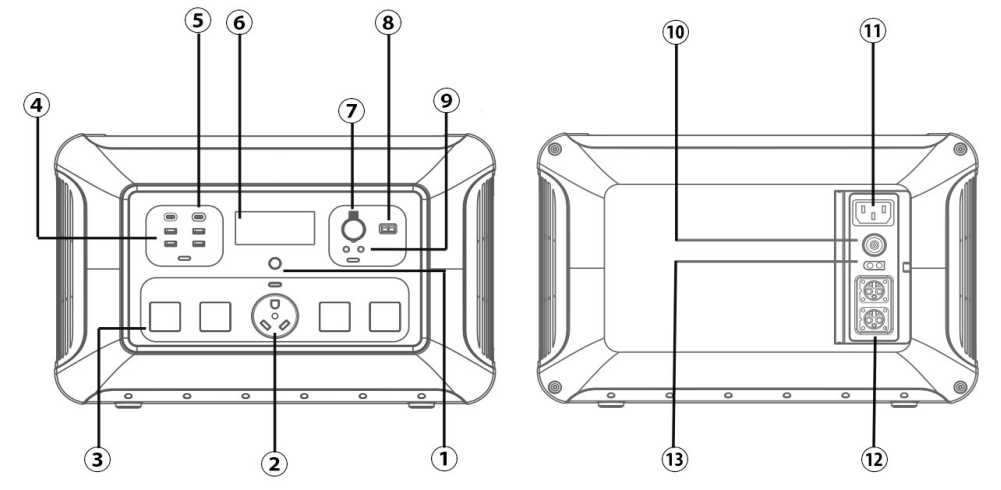

Product Introduction:
1. Power On/Off
8. Anderson Output
2. RV Output
9. DC Output
3. AC Output *4
10. Ooverload protector
4. USB-A Output *4
11. AC Input
5. USB-C Output *2
12. Extra Battery Connector
6. LED Display
13. Solar Input
7. Car Port Output

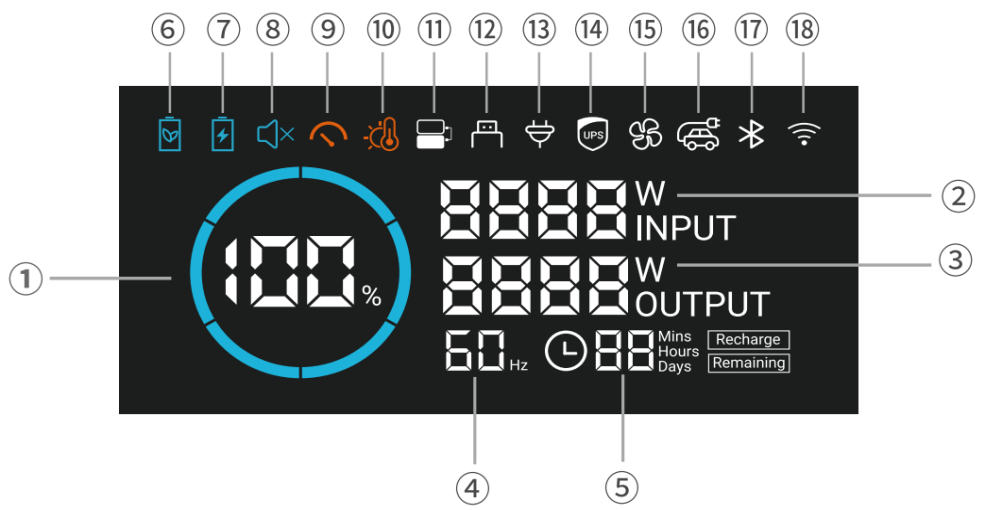

Product Description:
1. Percentage of charge
10. High temperature warning mark
2. The number of input power
11. Battery pack merge icon
3. The number of output power
12. DC indicates the icon
4. AC output hertz number
13. AC indicates the icon
5. Time remaining,fault code
14. The UPS indicates the ID
6. Power saving mode icon
15. Fab operating ID
7. Fast charge mode icon
16. Car charge output icon
8. Mute mode icon
17. Bluetooth connection icon
9. Output overload icon
18. Wifi connection icon
Packing Information:
Output
AC Output
Rated Voltage
100-120V/220-240V
Rated Power
3200W/3500W
Peak Power
6000W
Car port/DC5525/Anderson output
Rated Voltage
12V
Rated Current
10A
Power
120W（MAX）
USB-A (Output*2)
Rated Voltage- Current
5V-2.4A
Power
12W（MAX）
USB-A (Output*2)
Rated Voltage- Current
5V-3A,9V-2A,12V-1.5A
Power
36W（MAX）
USB-C (Output*1)
Rated Voltage- Current
5V/9V/15V-3A,20V-5A
Power
200W(MAX）
Rv Port output
Rated Current
30A(MAX)
Input
AC Input
Rated Voltage
100-120V
Rated Current
15A
Power
1500W(MAX)
AC Input
Rated Voltage
220-240V
Rated Current
10A
Power
2000W(MAX)
Solar Energy
Rated Voltage
12-150V MPPT
Rated Current
40A
Power
2000W(MAX)
Battery
Rated Capacity
3168Wh
Battery Cell Type
Lithium iron phosphate (LiFePO4）
Protection system
High temperature protection,low temperature protection,over discharge protection,over charge protection,overload protection,short circuit protection,over current protection
General
Storage Enviroment
14℉-104℉
Working Temperature
14℉-104℉

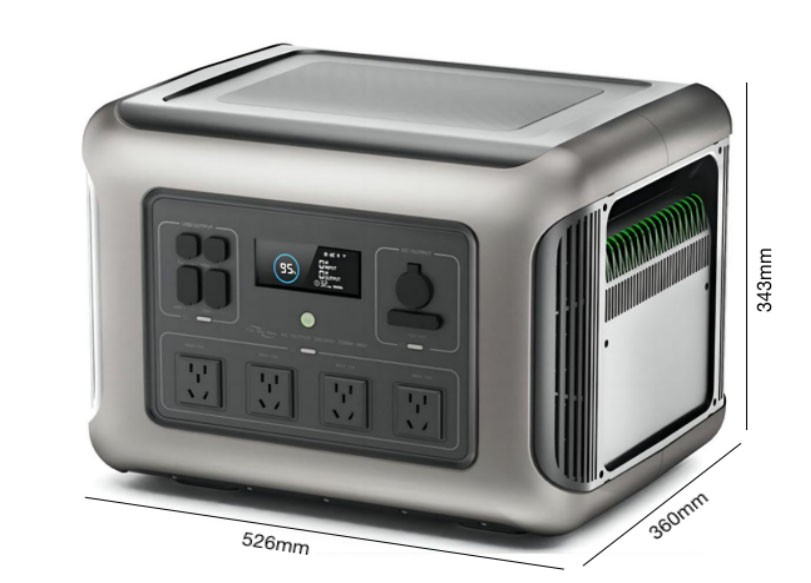

Product Size
530*360*345mm
Product Net weight
42kg
Certificates
1.CE 2.UL 3.PSE 4.UKCA 5.FCC 6.RoHS 7.UN38.3 8.MSDS

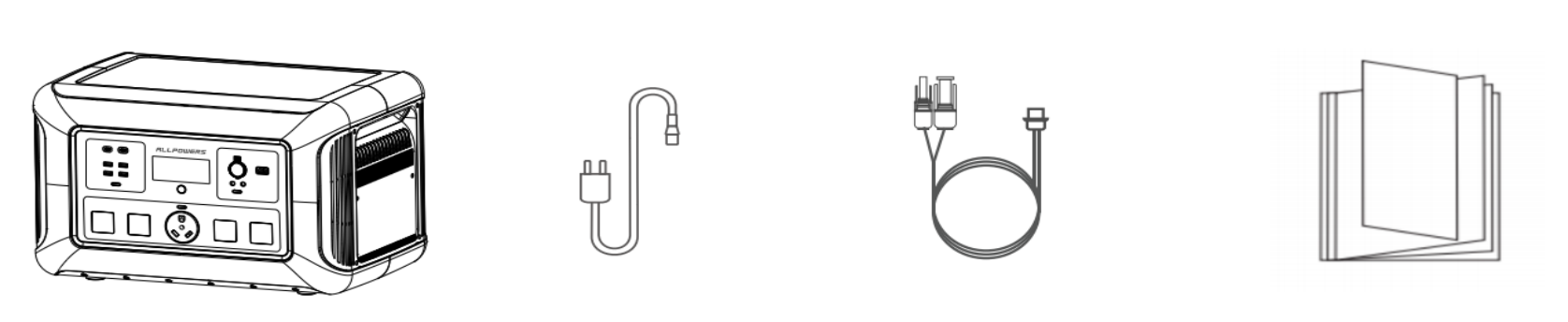

3500W Portable Power Station×1
AC Charging Cable ×1
MC4 TO XT60 charging cable x1
User Manual and warranty card x 1
