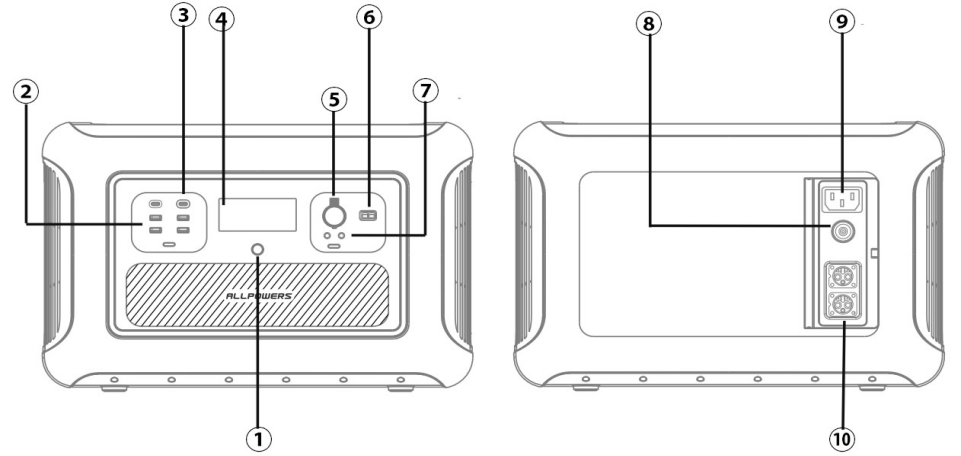

Product Introduction:
1. Power On/Off
6. Anderson Output
2. USB-A Output *4
7. DC Output
3. USB-C Output *2
8. Overload protector
4. LED Display
9. AC Input
5. Car Port Output
10. Extra Battery Connector

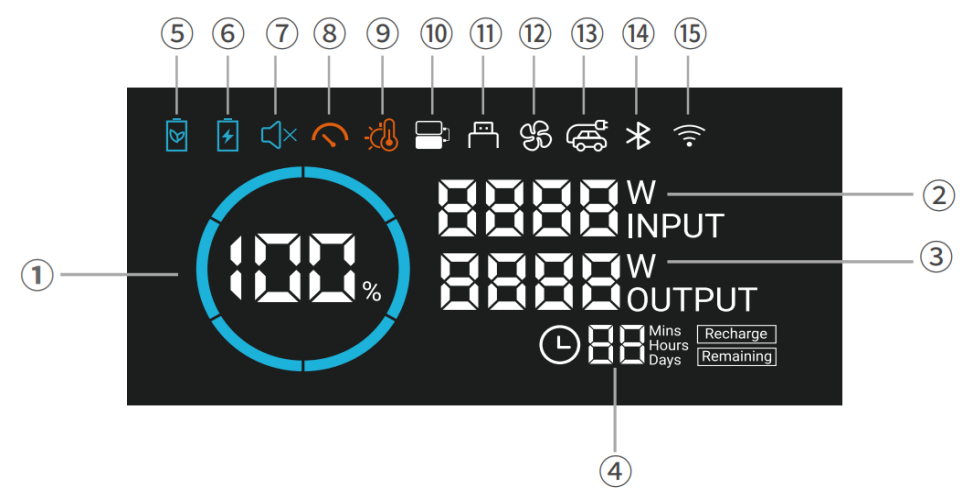

Product Description:
1. Percentage of charge
9. High temperature warning mark
2. The number of input power
10. Battery pack merge icon
3. The number of output power
11. DC indicates the icon
4. Time remaining,fault code
12. Fab operating ID
5. Power saving mode icon
13. Car charge output icon
6. Fast charge mode icon
14. Bluetooth connection icon
7. Mute mode icon
15. Wifi connection icon
8. Output overload icon
Output
Car port/DC5525/Anderson output
Rated Voltage
12V
Rated Current
10A
Power
120W（MAX）
USB-A (Output*2)
Rated Voltage- Current
5V-2.4A
Power
12W（MAX）
USB-A (Output*2)
Rated Voltage- Current
5V-3A,9V-2A,12V-1.5A
Power
36W（MAX）
USB-C (Output*1)
Rated Voltage- Current
5V/9V/15V-3A,20V-5A
Power
200W(MAX）
Input
AC Input
Rated Voltage
100-120V
Rated Current
15A
Power
1500W(MAX)
Rated Voltage
220-240V
Rated Current
10A
Power
2000W(MAX)
Battery
Rated Capacity
3168Wh
Battery Cell Type
Lithium iron phosphate (LiFePO4）
Protection system
High temperature protection,low temperature protection,over discharge protection,over charge protection,overload protection,short circuit protection,over current protection
General
Storage Enviroment
14℉-104℉
Working Temperature
14℉-104℉

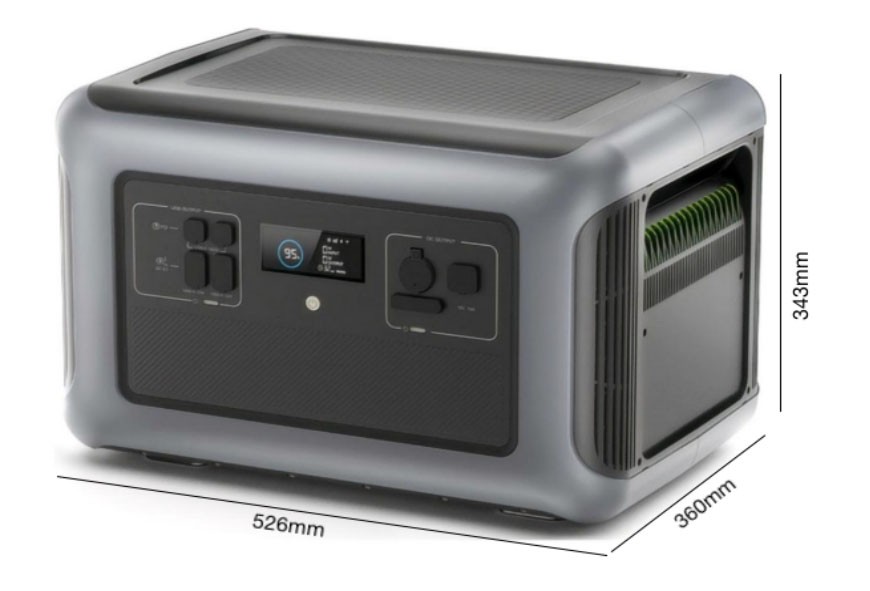

Product Size
530*360*345mm
Product Net weight
39.5kg
Certificates
1.CE 2.UL 3.PSE 4.UKCA 5.FCC 6.RoHS 7.UN38.3 8.MSDS

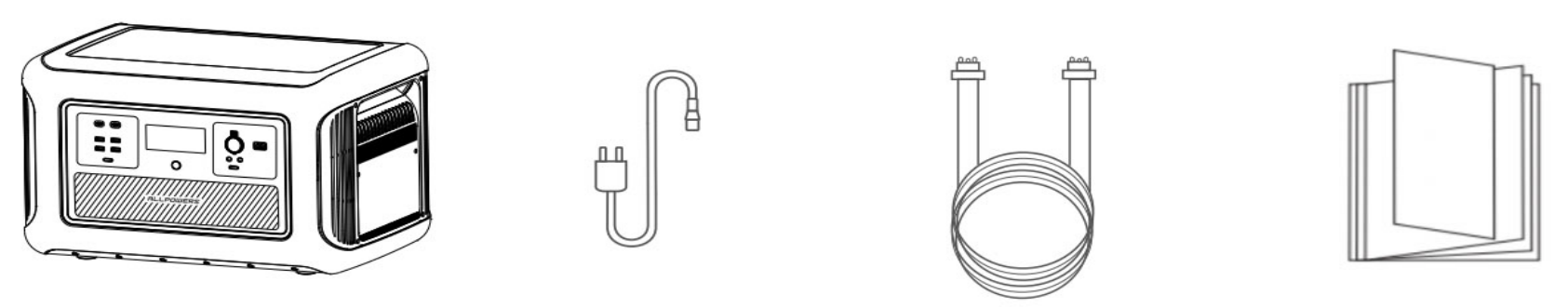

Packing Information:
3000W Stack Battery Pack×1
AC Charging Cable ×1
Parallel connection cable x1
User Manual and warranty card x 1
