| SPECIFICATION | ||||||||||||
| General | Capacity | 2240Wh | ||||||||||

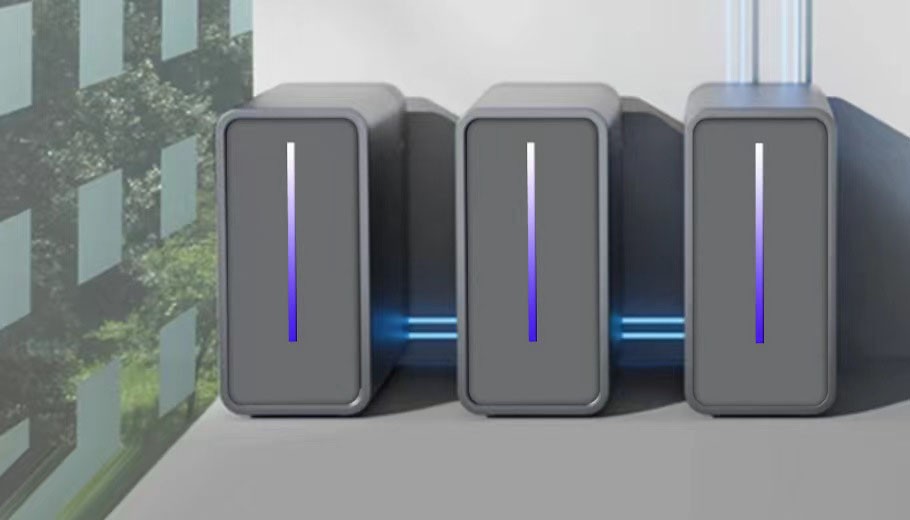

| Extra Battery | B2500 Supports up to 2 Marstek P2500 Batteries | |||||||||||
| Cell Chemistry | LiFePO4 | |||||||||||
| Lifecycle | 6000+ Cycles to 80% Capacity | |||||||||||
| Output | Power | 400W x 2 Max | ||||||||||
| Voltage Range | 42V ~ 50.4V | |||||||||||
| Max. Output Current | 19.04A | |||||||||||
| Input | Power | 500W x 2 Max(Dual MPPT) | ||||||||||
| Voltage Range | 12V ~ 59V | |||||||||||
| Max. PV Voltage | 59V | |||||||||||
| Max. Input Current | 8.47A for 59V,Support>8.47A | |||||||||||
| Other | Storage Temp. | 14℉~113℉(10℃ ~ 50℃) | ||||||||||
| Operating Temp. | 14℉~104℉ (10℃ ~ 40℃) | |||||||||||
| Material | ABS+PC/Metal | |||||||||||
| Weight | 20±0.5kg | |||||||||||

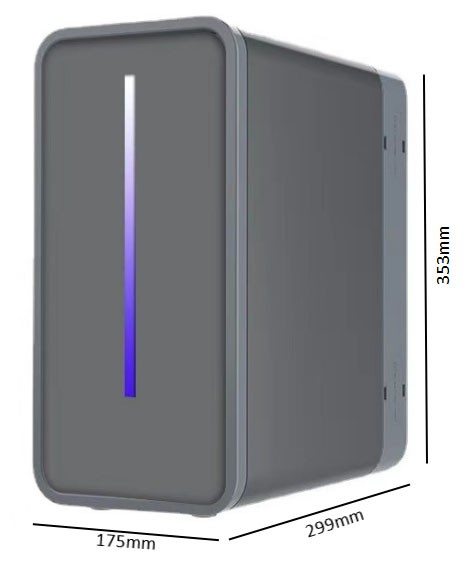

| Dimensions | 350 x 295 x 175mm | |||||||||||
| Battery Management System | OVP,UVP,OCP,SCP,OTP,UTP,etc | |||||||||||
| Bluetooth + Wifi | BT5.2 + WIFI 2.4G | |||||||||||
